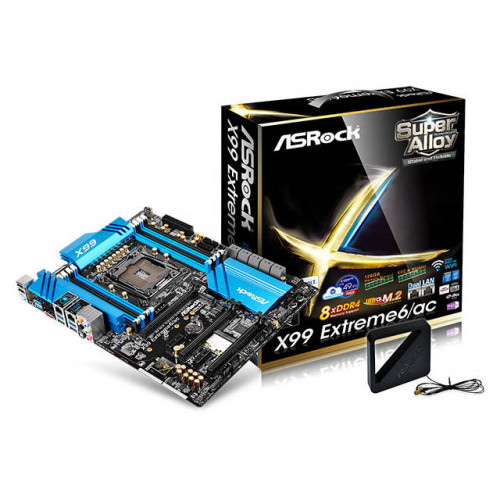

ASRock X99 EXTREME6/AC LGA2011-v3/ Intel X99/ DDR4/ Quad CrossFireX & Quad SLI/ SATA3&USB3.0/ WiFi/ M.2/ A&2GbE/ ATX Motherboard

Specifications

• Mfr Part Number: X99 EXTREME6/AC
• CPU: LGA 2011-v3
  • Support Intel Core i7 and Xeon 18-Core Processors
  • Digi Power Design
  • 12 Power Phase Design
  • Supports Intel Turbo Boost 2.0 Technology
  • Supports Untied Overclocking Technology
• Chipset: Intel X99
• Memory: 8x DDR4-3000+(OC)/ 2933+(OC)/ 2800(OC)/ 2400(OC)/ 2133/ 1866/ 1600/ 1333/ 1066, Quad-Channel, Non-ECC, Unbuffered, Max Capacity up to 128GB; Supports DDR4 ECC, Un-buffered Memory/RDIMM with Intel Xeon Processors E5 Series in the LGA 2011-v3
• Slots: 3x PCI-Express 3.0 x16 Slots (one runs at x8), 2x PCI-Express 2.0 x1 Slots, 1x Mini PCI-Express Slot
• Multi-Graphics: Supports AMD Quad CrossFireX, 3-Way CrossFireX, CrossFireX and NVIDIA Quad SLI, 3-Way SLI, SLI Technology
• Storage:
  • SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
  • M.2: 1x Ultra M.2 Port, Supports M.2 SATA3 & PCI-Express 3.0 x4 (32 Gb/s)
• Audio: Realtek ALC1150 7.1-Channel High Definition Audio CODEC; Supports Premium Blu-ray Audio
• LAN: Qualcomm Atheros AR8171 Series PCI-Express x1 and Intel I218V Gigabit Ethernet Controllers; IEEE 802.11a/b/g/n/ac Wireless LAN (2.4/5GHz); Bluetooth 4.0 / 3.0 + High speed class II
• Ports: 10x USB 3.0 Ports (6 rear, 4 via headers), 7x USB 2.0 Ports (2 rear, 4 via headers, 1 Vertical Type A), 1x PS/2 Keyboard/Mouse Combo Port, 1x Optical S/PDIF Out, 1x eSATA Port, 2x RJ45 LAN Ports, Audio I/O Jacks
• Power Connector: 1x 24pin ATX Power Connector, 1x 8pin 12V Power Connector, 1x PCI-Express Power Connector
• Form Factor: ATX
