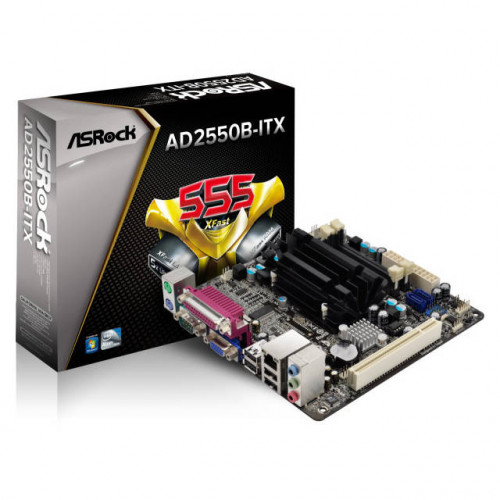

ASRock AD2550B-ITX Intel Atom D2550/ Intel NM10/ DDR3/ A&V&L/ Mini-ITX Motherboard

Specifications

• Mfr Part Number: AD2550B-ITX
• CPU: Intel Dual-Core Atom Processor D2550 (1.86 GHz)
• Chipset: Intel NM10 Express
• Memory: 2x DDR3-1066/800 DIMM Slots, Non-ECC, Un-buffered, Max Capacity of 4GB
• Slots: 1x PCI Slot
• SATA: 2x SATA2 Ports
• Audio: VIA VT1705 5.1-Channel High Definition Audio CODEC,Supports THX TruStudio
• Video: Integrated Intel PowerVR SGX545 Graphics Controller
• LAN: Realtek RTL8105E PCI-Express Fast Ethernet Controller
• Ports: 8 x USB 2.0 Ports (4 rear, 4 via headers); 1x PS/2 Mouse Port; 1x PS/2 Keyboard Port; 1x VGA Port; 1x Serial Port; 1x Parallel Port; 1x RJ45 LAN Port; Audio I/O Jacks
• Power Connector: 1x 24pin ATX Power Connector
• Form Factor: Mini-ITX, 6.7 x 6.7 inch / 17.0 x 17.0 cm
