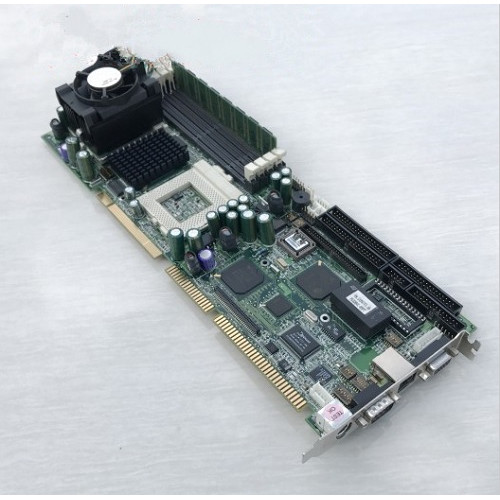

Nexcom System Motherboard Dual CPU Socket Scsi Celeron/Coppermine Rev. C PEAK6320A

Nexcom System Motherboard Dual CPU Socket Scsi Celeron/Coppermine Rev. C PEAK6320A
Nexcom System Motherboard Dual CPU Socket Scsi Celeron/Coppermine Rev. C PEAK6320A Nexcom System Motherboard Dual CPU Socket Scsi Celeron/Coppermine Rev. C PEAK6320A
Brand: 3Com
Part Number: PEAK6320A
MSRP: $5,940.99
Availability: 2
Condition: New
Price: $4,950.00
Qty:     - OR -   Add to Wish List
Add to Compare

Specifications

System Chipset Intel AGPset
Form Factor PICMG
Ethernet Chipset Intel 82559
Video Chipset C&T 69000
BIOS Award System BIOS, Plug & Play support; Advanced Power Management support; Advanced Configuration & Power Interface support; 2M bits flash ROM
Board Type Full Size
Certification CE approval; FCC Class A
Chipset Intel 82440BX AGPset; 66/100MHz FSB support, PCI V2.1 complied, Optimized SDRAM support
CPU Support Intel Celeron/Coppermine CPU with 128/256 cache on die; Brand New Socket 370 CPU FC-PGA running at 66/100MHz FSB up to 700MHz; Dual CPU support; Support SIMD instruction; On-board intelligent switching type power regulator
Dimensions 340mm(L)x122mm(W)
Environment Operating temperatures: 0C to 60C; Storage temperatures: -20C to 80C; Relative humidity: 10% to 90% (Non-condensing)
I/O Winbond 83977 Super I/O on board; SIOx2 with 2x 16C550 UARTs, 1x 9 -pin D-type, 1x 10-pin HEADER, optional RS422/485x1; 1x PIO, Bi-directional, EPP/ECP support, 1x 26 pin, FDD controller: 5.25" 360K/1.2MB, 3.5" 720K/1.2MB/1.44/2.88MB support, 1x 34-pin connector; EIDE- 2x, support up to four EIDE devices up to mode 4 P
ISAMAX Support Maximize ISA signals to support ISA cards up to 20
LAN Intel 82559 Single Ethernet controller; 10 Base T/100 Base TX support, full duplex; Complied with PCI V2.1 IEEE802.3, Backward compatible with former 82558 Ethernet controller IEEE802.3U; Driver support: DOS/Windows, Widows 95.98, Windows NT4.0; 1x RJ-45 connector
Main Memory Support SDRAM up to 1GB (Max.); 4x 168-pin DIMM socket; ECC support (single bit error correction/Multiple bit errors reporting)
Power Requirements +5v: 20A (Max.); +12V: 400mA(Max.); -12V: 50mA (Max.)
Processor Intel Pentium III
RTC High precision real time clock/calendar with battery back up
SCSI Adaptec 7890 SCSI controller; Driver support: Windows 95/98, Windows NT4.0;
SSD Socket On-board reserved socket for DOC of M-systems: 2MB-144MB, etc
System Architecture Full size SBC with PCI/ISA Golden Finger; Intel SOCKET 370 Celeron/Coppermine with 66/100MHz FSB; PCI v2.1 complied, PICMG 1.0 (Rev.2.0) complied; Intel MPS1.1 specification complied
System Monitor Winbond W3782Dsystem monitor controller; Seveb voltage values (for +3.3V, +5V, +12V, -12V, Vtt and Vcore x2); Two Fan speed (For CPU); Three temperature; Drivers support: Windows 95/98, Windows NT4.0
VGA C&T 69000 AGP mode VGA controller; TFT LCD/DSTN LCD/CRT control; 2MB SDRAM on die; Driver support: Windows 95/98, Windows NT4.0; 1x 15 pin CRT connector, 1x 50 pin LCD panel connector
Watchdog Timer 1,2,4....64 seconds time-out intervals
