Supermicro SuperChassis 514-R400C (No Paint) - Rack-mountable - 1U - 2 x Bay - 4 x 1.57" x Fan(s) Installed - 2 x 400 W - Power Supply Installed - EATX Motherboard Supported - 6 x Fan(s) Supported - 2 x Internal 2.5" Bay - 1x Slot(s) CSE-514-R40

Supermicro SuperChassis 514-R400C (No Paint) - Rack-mountable - 1U - 2 x Bay - 4 x 1.57" x Fan(s) Installed - 2 x 400 W - Power Supply Installed - EATX Motherboard Supported - 6 x Fan(s) Supported - 2 x Internal 2.5" Bay - 1x Slot(s) CSE-514-R40
Brand: Supermicro
Part Number: CSE-514-R400C
MSRP: $766.99
Availability: 10 or more
Condition: New
Price: $638.44
Qty:     - OR -   Add to Wish List
Add to Compare

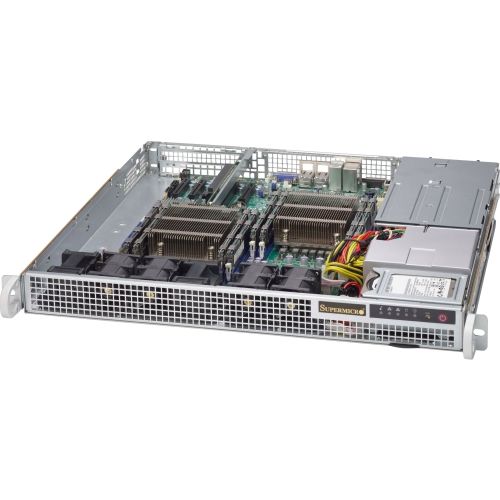

Supermicro SuperChassis 514-R400C (No Paint) - Rack-mountable - 1U - 2 x Bay - 4 x 1.57" x Fan(s) Installed - 2 x 400 W - Power Supply Installed - EATX Motherboard Supported - 6 x Fan(s) Supported - 2 x Internal 2.5" Bay - 1x Slot(s)

1U SuperChassis 514 Supermicro''s SC514 1U cost-effective chassis, featuring a short depth less than 16.9", is design for resource optimized while providing high performance. Optimized for dual-processor or single-processor motherboard. The SC514 features an advanced thermal design for highly efficient cooling and quiet operation with up to 6x 4cm counter-rotating cooling fans, and supports a complete selection of high-efficiency power supplies to fit exactly the desired application. Tooless serviceability and quick release sliding rails are also available for deploying in HPC and data center environments.


Technical Specifications:
Motherboard Supported: EATX
Number of Fans Supported: 6
Number of Fans Installed: 4
Fan Size Supported: 1.57"
Installed Fan Size: 1.57"
Features: Intrusion Switch
Number of Internal 2.5" Bays: 2
Number of Total Expansion Bays: 2
Number of Total Expansion Slots: 1
Input Voltage: 120 V AC, 230 V AC
Power Supply Installed: Yes
Number of Power Supplies Supported: 2
Number of Power Supplies Installed: 2
Power Source: Power Supply
Power Supply Wattage: 400 W
Redundant Power Supply: Yes
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7"
Width: 17.2"
Depth: 16.9"
Package Contents: SuperChassis 514-R400C (No Paint), 1 x 1U Redundant Power Distributor Board for SC514, SC113 etc., (rename from PDB-PT514-1824),RoHS/REACH, 2 x US Power Cord 18AWG 6ft, PBF (default for low watt), 1 x Front Ctrl Cable Round 16 pin to 16 pin, 40cm, 28AWG, 4 x 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH, 1 x Front Control Board (FP512) for SC512 (surface-mounted LED), 1 x Dual 2.5" fixed HDD bracket for SC514,515,HF,RoHS/REACH, 1 x Set Outer Rail, quick-release type, 25.6\" to 33.05\", 1 x Set Inner Rail, front, short, quick-release type
