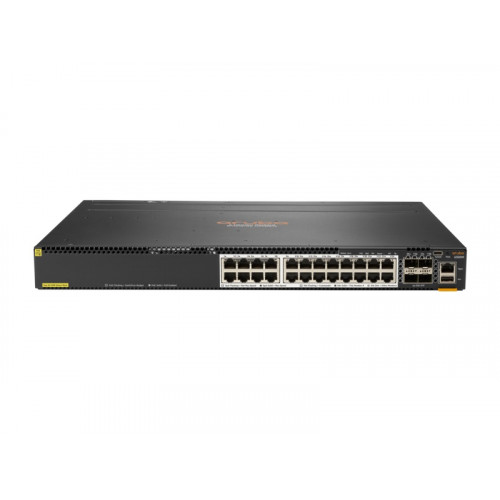

HPE Aruba 6300m 24-port Hpe Smart Rate 1/2.5/5gbe Class 6 Poe And 4-port Sfp56 Switch JL660-61001

HPE Aruba 6300m 24-port Hpe Smart Rate 1/2.5/5gbe Class 6 Poe And 4-port Sfp56 Switch JL660-61001
Brand: HPE
Part Number: JL660-61001
MSRP: $13,724.99
Availability: 10 or more
Condition: New
Price: $11,437.20
Qty:     - OR -   Add to Wish List
Add to Compare

Detail overview

Hpe Jl660-61001 Aruba 6300m 24-port Hpe Smart Rate 1/2.5/5gbe Class 6 Poe And 4-port Sfp56 Switch :

Key Features :

  • Device Type : Switch - 24 Ports - L3 - Managed - Stackable
  • Enclosure Type : Rack-mountable 1u
  • Subtype : Gigabit Ethernet
  • Ports : 24 X 1/2.5/5/10gbase-t + 4 X 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit Sfp56 (uplink / Stacking)
  • Power Over Ethernet (poe) : Poe+
  • Poe Budget : 1440 W
  • Performance : Switching Capacity: 640 Gbps ¦ Throughput: 476 Mpps ¦ Latency (1 Gbps): 4.24 Μs ¦ Latency (10 Gbps): 1.5 Μs ¦ Latency (25 Gbps): 2.91 Μs ¦ Latency (50 Gbps): 3.49 Μs ¦ Stacking Bandwidth: 200 Gbps
  • Capacity : Switched Virtual Interfaces (svis): 1000 ¦ Ipv4 Host Table Capacity: 32000 ¦ Ipv6 Host Table Capacity: 32000 ¦ Ipv4 Routes (unicast): 64000 ¦ Ipv6 Routes (unicast): 32000 ¦ Ipv4 Routes (multicast): 8000 ¦ Ipv6 Routes (multicast): 8000 ¦ Igmp Groups: 8000 ¦ Mld Groups: 4000 ¦ Ipv4 Acl Entries (ingress): 5000 ¦ Ipv6 Acl Entries (ingress): 1250 ¦ Mac Acl Entries (ingress): 5000 ¦ Ipv4 Acl Entries (egress): 2000 ¦ Ipv6 Acl Entries (egress): 500 ¦ Mac Acl Entries (egress): 2000
  • Mac Address Table Size : 32000 Entries
  • Jumbo Frame Support : 9198 Bytes
  • Routing Protocol : Egp, Bgp-4, Igmpv2, Igmp, Vrrp, Ospfv2, Igmpv3, Ospfv3, Msdp, Static Ipv6 Routing, Ecmp, Mld, Bidirectional Forwarding Detection (bfd)
  • Remote Management Protocol : Rmon, Telnet, Snmp 3, Snmp 2c, Https, Tftp, Ssh, Cli, Xrmon, Sftp
  • Authentication Method : Radius, Tacacs+
  • Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1v, Ieee 802.3at, Ieee 802.3bz, Ieee 802.3bt
  • Processor : 1 X Arm Cortex-a72: 1.78 Ghz
  • Ram : 8 Gb Ddr4 Sdram
  • Flash Memory : 32 Gb

    Expansion / Connectivity :
    Interfaces :
  • 24 X 1/2.5/5/10gbase-t Rj-45 Poe+ - 60 W
  • 4 X 1gbit/10gbit/25gbit/50gbit Sfp56
  • 1 X Usb-c Console
  • 1 X Management
  • 1 X Usb Type A
