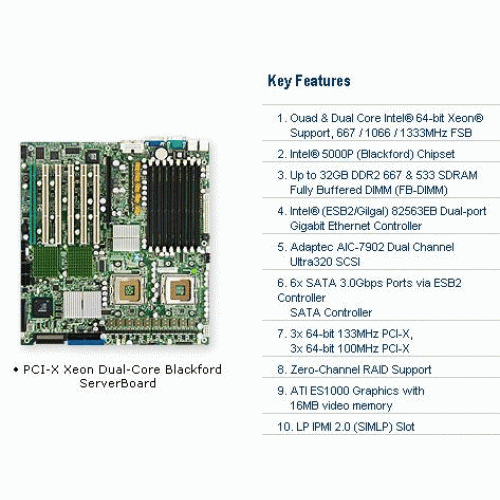

Supermicro X7DB8-X-O Dual LGA771 Xeon/ 5000P/ DDR2/ SCSI/ V&2GbE Server Motherboard

• Mfr Part Number: X7DB8-X-O
• CPU: Dual 771-pin LGA Sockets Support Intel 64-bit Quad-Core Xeon Processor 5300 sequence (Clovertown processor)/ Dual-Core Intel Xeon Processor 5100/5000 sequence (Woodcrest/Dempsey processor), upto 3.73GHz; FSB 1333/1066/667 MHz
• Chipset: Intel 5000P (Blackford) & MCH + Two PXH + ESB2
• Memory: 8x 240pin DDR2-667/533 FB-DIMMs, Dual branch memory bus, ECC, Max capacity 32GB
• Slots: 3x 64-bit 133MHz PCI-X (3.3V) slots; 3x 64-bit 100MHz PCI-X (3.3V) slots; 1x 200-pin IPMI slot
• IDE/SATA: 1x ATA-100 channel; 6x SATA2 ports support RAID 0, 1, 5, 10
• SCSI: Adaptec AIC-7902 Dual-Channel Ultra320 SCSI Controller, Support Host RAID 0, 1, 10
• Video: ATI ES1000 Graphics Controller w/ 16MB video memory
• LAN: Intel 82563EB Dual-Port Gigabit Ethernet Controller
• Ports: 5x USB 2.0 ports (2 rear, 3 by headers); 2x PS/2 ports; 2x Serial ports (1 rear, 1 by header); 1x VGA port; 2x RJ45 LAN ports
• Power Connector: 24pin Main power, 4pin (+12V), 8pin (+12V)
• Form Factor: Extended ATX, 12 x 13.05 inch / 30.5 x 33.2 cm
• Package: Retail
• To ensure system stability, a 500W (minimum) ATX 12V power supply is required
