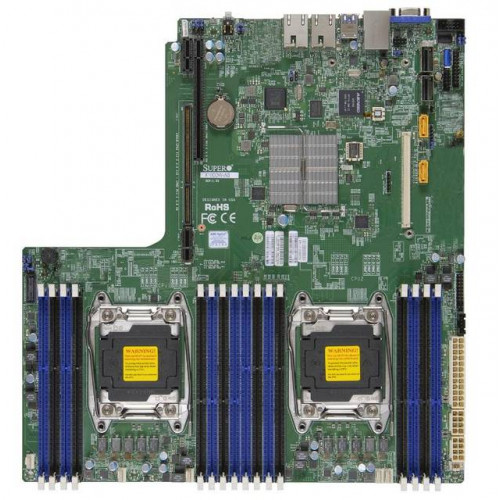

Supermicro X10DDW-I-O Dual LGA2011/ Intel C612/ DDR4/ SATA3&USB3.0/ V&2GbE/ Proprietary WIO Server Motherboard

Specifications

• Mfr Part Number: X10DDW-I-O
• CPU: Dual LGA2011
  • Support Intel Xeon E5-2600 v3 Family Processors
  • Support up to 18 Cores
  • Support  up to 45MB Cache
  • QPI up to 9.6 GT/s
  • Support up to 145W TDP
• Chipset: Intel C612 Express
• Memory: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Supports up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory
• Slots: 1x PCI-Express 3.0 x24 Slot (Left riser), 1x PCI-Express 3.0 x8 Slot (Right riser), 1x PCI-Express 3.0 x8 (Add-on module)
• SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
• Video: ASPEED AST2400 BMC Graphics
• LAN: Intel i350 Dual Port Gigabit Ethernet Controller; 1x Realtek RTL8211E PHY (dedicated IPMI)
• Ports: 3x USB 3.0 Ports (2 rear, 1 Type A), 4x USB 2.0 Ports (2 rear, 2 via headers), 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: Proprietary WIO, 12.8 x 13.4 inch / 32.5 x 34.0 cm
• RoHS Compliant
