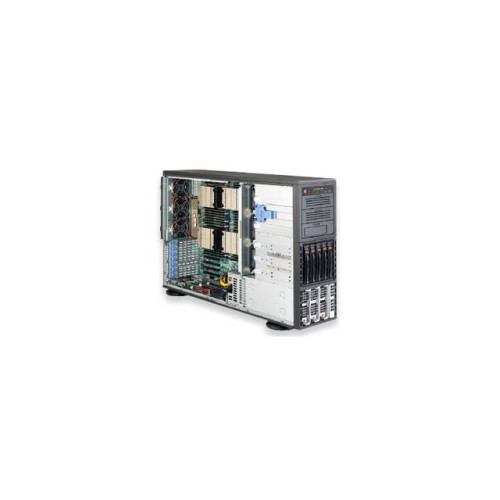

Supermicro SuperServer SYS-8047R-TRF+ Quad LGA2011 1400W 4U Rackmount/Tower Server Barebone System (Black)

Specifications

• Mfr Part Number: SYS-8047R-TRF+
• Motherboard: Super X9QRi-F+
• Processor: Quad LGA2011
  • Supports Intel Xeon E5-4600 family Processors
  • Cache up to 20MB

  • QPI up to 8 GT/s
• Chipset: Intel C602

• Memory: 32x 240pin DDR3-1600/1333/1066/800 DIMMs, Supports up to 1TB ECC/REG Memory

• Slots: 4x PCI-Express 3.0 x16 Slots (two run at x8)

• SATA: 2x SATA3 Ports, Support RAID 0, 1; 4x SATA2 Ports, Support RAID 0, 1, 5, 0

• Video: Matrox G200eW (Nuvoton WPCM450 BMC) Graphics

• LAN: Intel i350 Dual Port Gigabit Ethernet Controllers; 1x Realtek RTL8201F PHY (dedicated IPMI)

• Drive Bays: 5x 3.5" Hard Drive Bays, 3x 5.25" Peripheral Drive Bays

• Backplane: SAS/SATA Hard Drive Backplane (SAS support requires optional SAS controller)

• Ports: 4x USB 2.0 Ports, 1x VGA Port, 1x Serial Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 4U Rackmount / Tower
• Power Supply: 1400W 80 PLUS Platinum Certified Redundant High-efficiency AC Power Supply w/ Digital Switching Control & PMBus 1.2
• System Cooling: 3x 92mm RPM Hot-Swappable Cooling Fans, 3x 80mm RPM Hot-Swappable Rear Exhaust Fan, 1x Air Shroud
• Color: Black
• Dimensions (WxDxH): 7.0 x 28.4 x 18.2 inch / 178.0 x 721.0 x 462.0 mm
• Weight: 65.5 lbs / 29.7 kg
• RoHS Compliant
